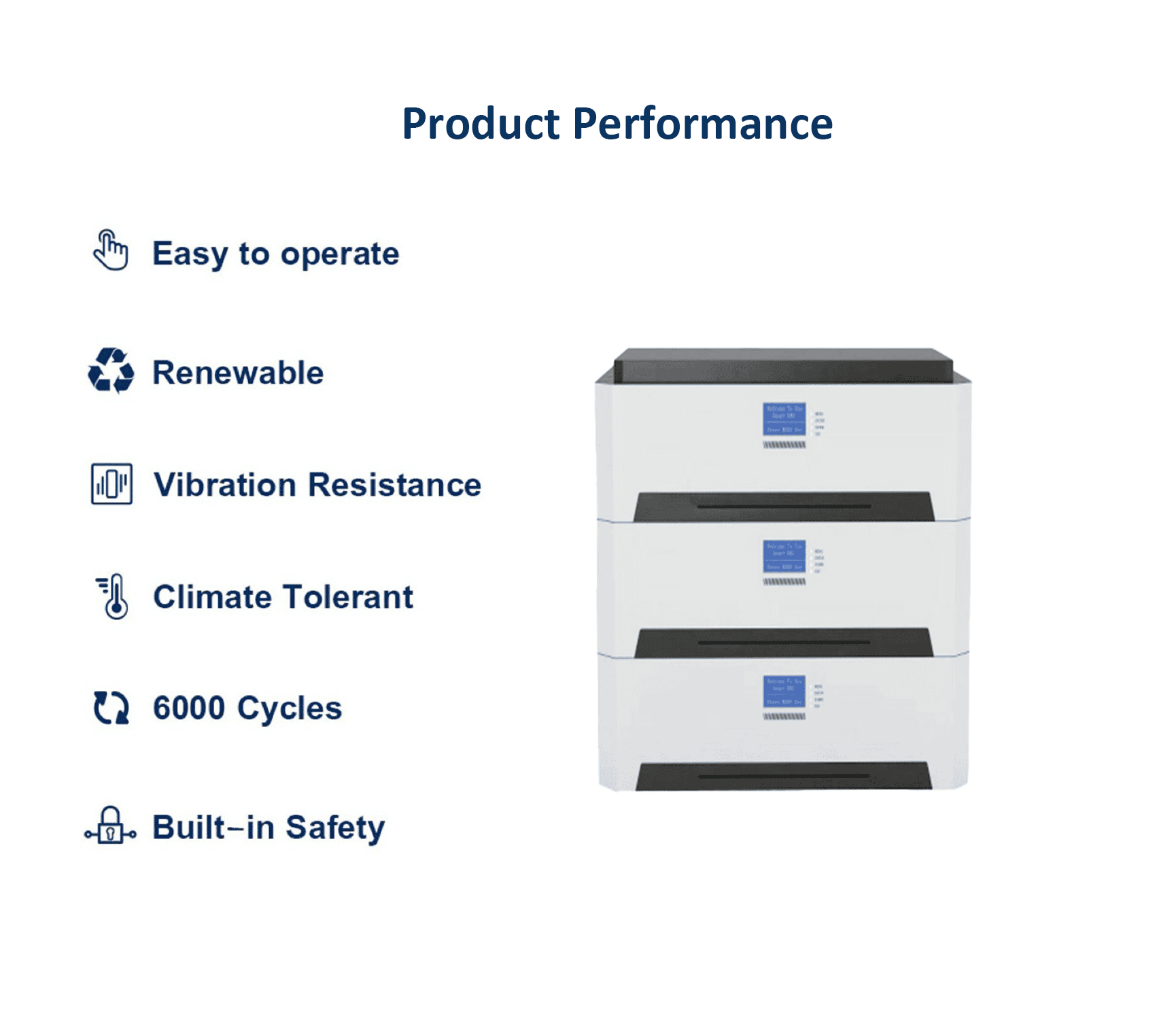

Stackable Energy Storage System

Stackable Energy Storage System

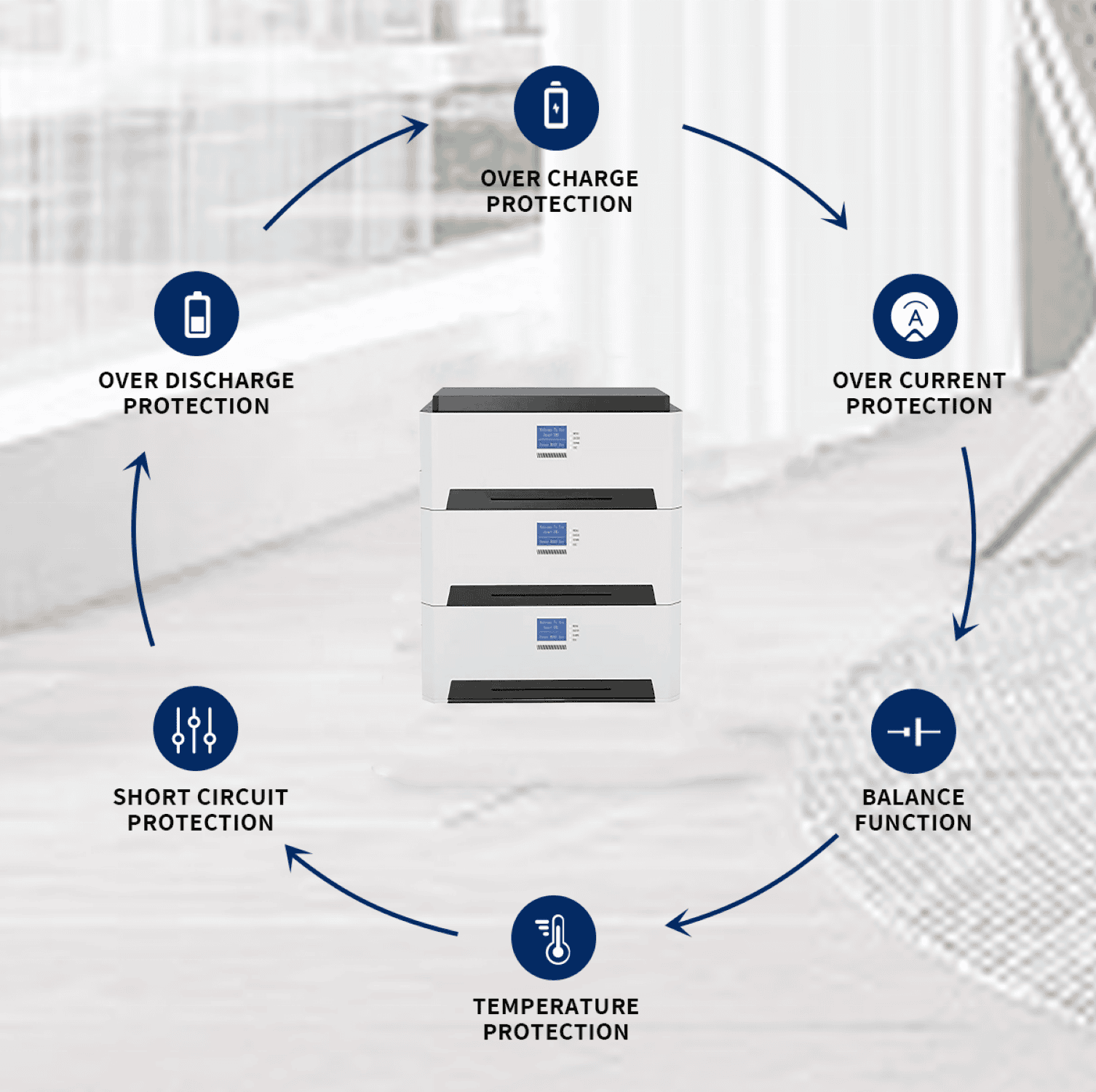

CM-Stackable Energy Storage System is designed with lithium lifepo4 cells offering superior performance and high reliability as they can be used for power storage. The important thing of this storage battery is scalability so you can extend its capacity by adding additional batteries only and raising storage up to high capacity, with no extra hardware needed when connected in parallel. What’s more, the built-in super intelligent BMS supports monitoring the battery status in real time.

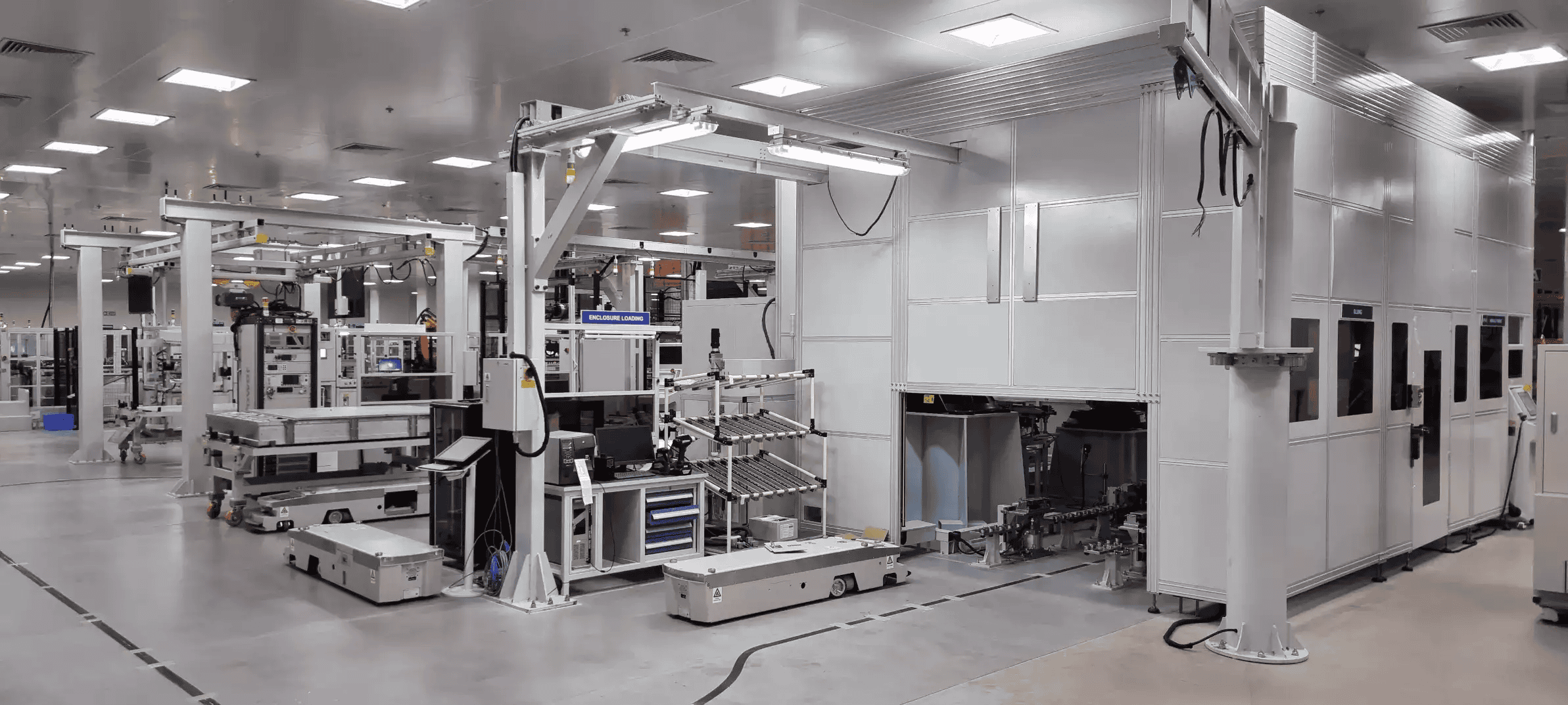

Check Ceramax Energy Production Line

  • Environmentally friendly non-toxic, no rare metal
  • Easy to install and operate
  • Stackable type and expandable
  • Support smart communication function

Please tell us your name

Model

CM48100

CM48150

CM48200

CM48400

Battery Type

LiFePO4

Nominal Voltage

48V

Rated Voltage

51.2V

Volume

100Ah

150Ah

200Ah

400Ah

Working Voltage Range

40-58.4V

Recommend Charge/Discharge Current

50A

75A

100A

200A

Max Discharge Current

200A

300A

400A

800A

Rated Energy(Wh)

5120

7680

10240

20480

Life time

≥ 6000 cycles(At 80% DOD at 25 deg C)

Working Temperature

Charge: 0-60℃ Discharge: -10- 60°C

Humidity

5% – 95%

IP protection Rating

IP54

Scalable

Yes

Communication

CAN, RS232, RS485

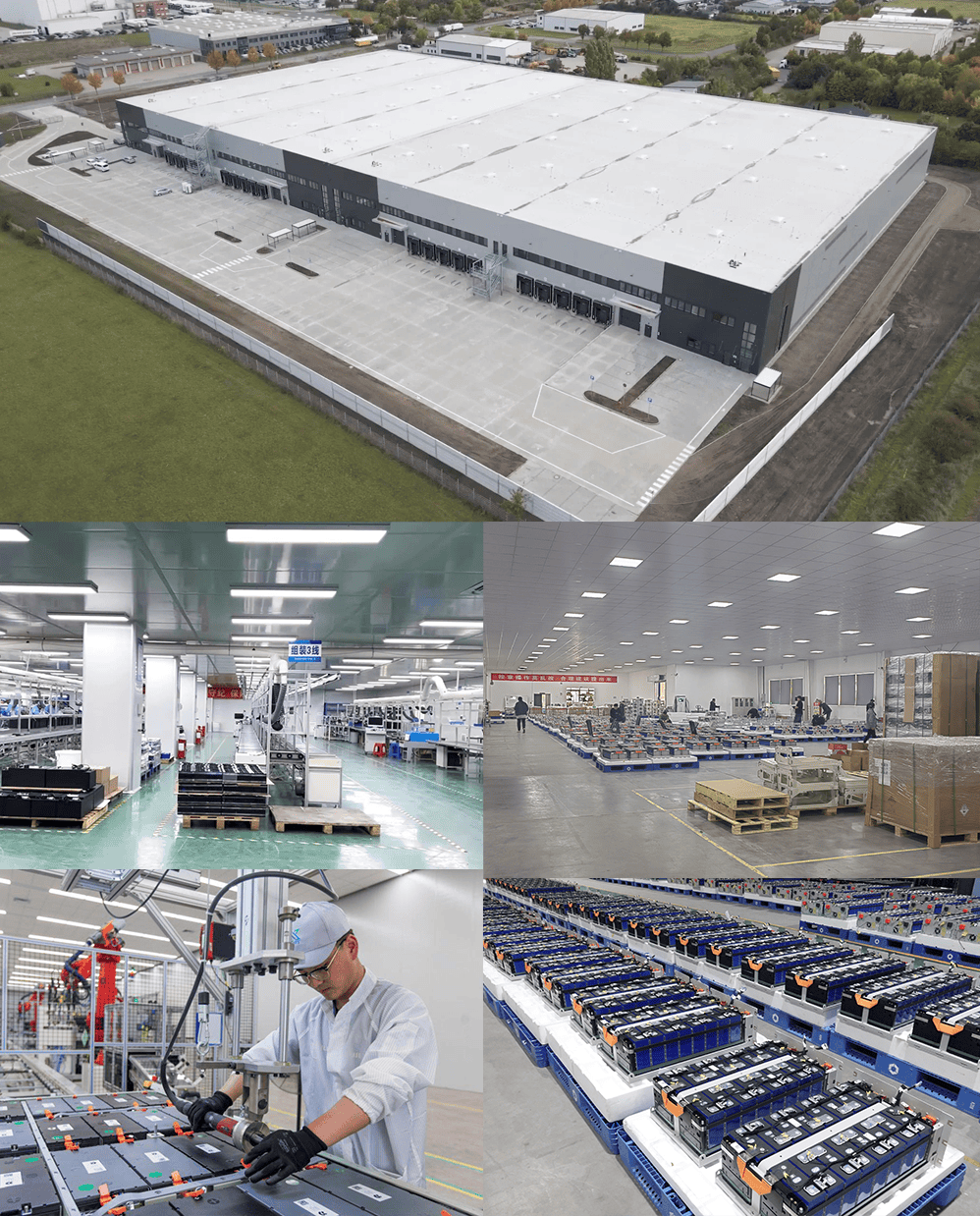

Check Ceramax Energy Factory

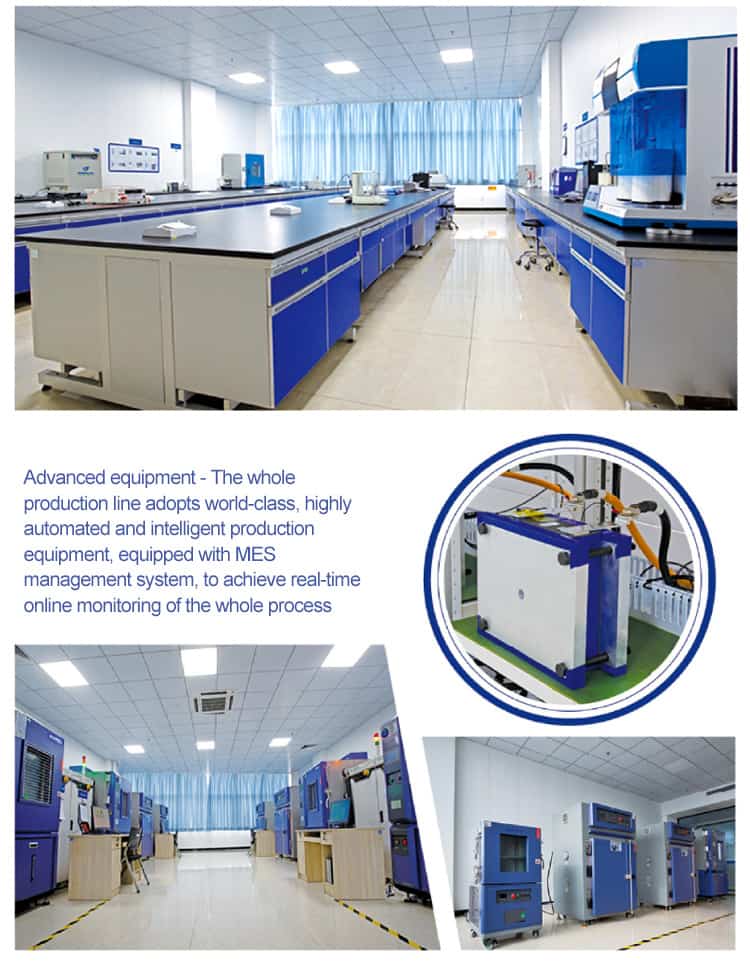

Check Ceramax Testing Equipment
