CM Racked 48100 Lithium Battery
CERAMAX Racked 48100 Lithium Battery is an excellent energy source. It is specially designed for commercial systems and home energy storage, with extraordinary features such as high charging and discharging performance, long lifespan.
Designed with Lithium Iron Phosphate cells, the battery offers superior performance and high reliability and can be used in power storage solutions or as a power source. It can be equipped with a battery management system to manage and distribute electric energy reasonably.
Products Advantage
1.High Compatibility
(Compatible with most of the available Hybrid inverters.)
2.Large capacity / High Efficiency
3.Flexible Configuration
4.Long Cycle Life ≥ 6000 Times
5.Superior Safety
(Short Circuit Protection, Over Charge&Over Discharge Protection)

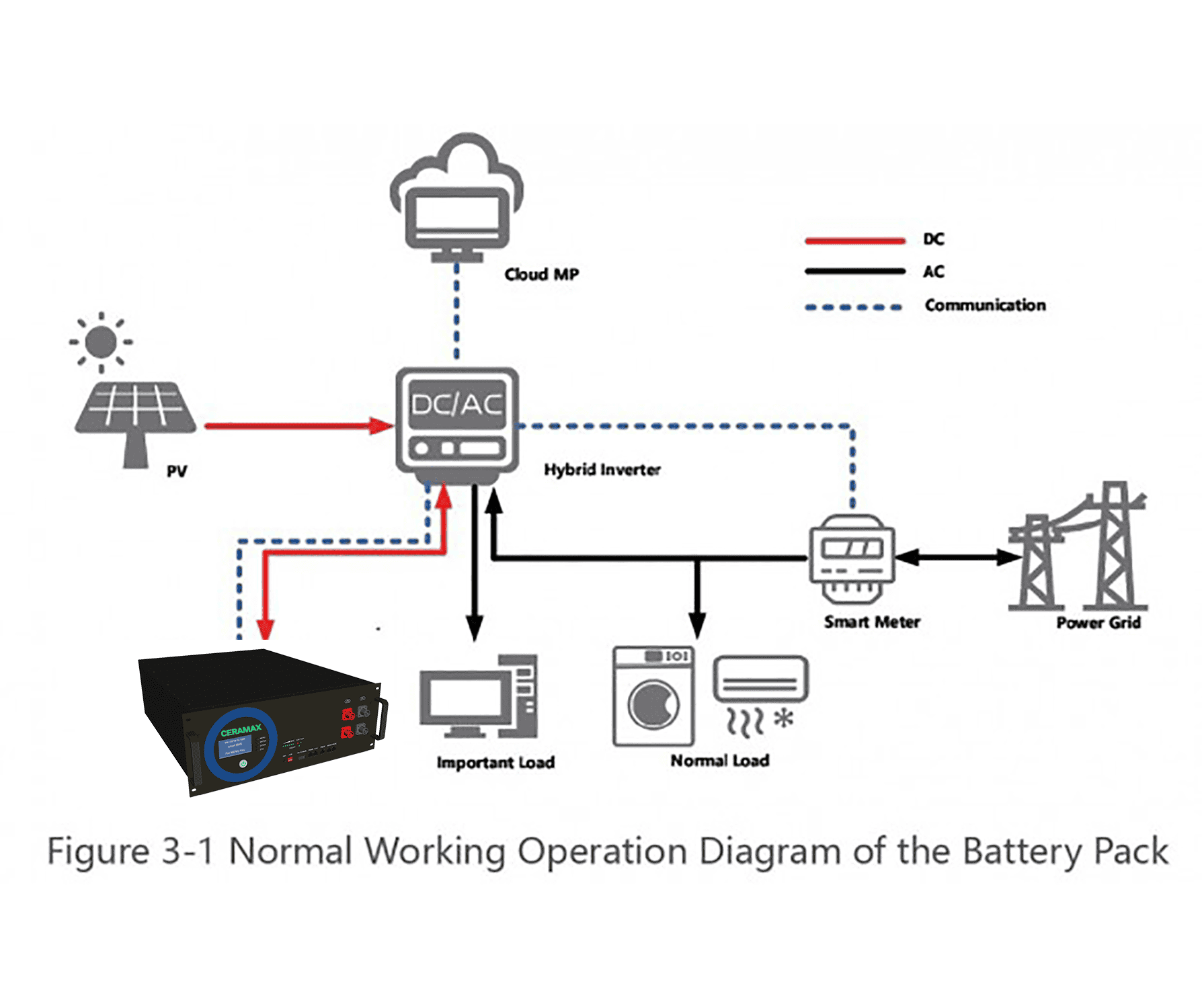

Work Mode Demonstration
Model | CM48100 |
Battery Type | LFP |
Energy | 5.12KWh |
Capacity | 100AH |
Nominal Voltage | 48V |
Rated Voltage | 51.2V |
Working Voltage Range | 40～58.4V |
Recommend Charge/Discharge Current | 50A |
The Charge/Discharge Ratio | 0.5C |
DOD | 80% |
Life Time | ≥6000 |
Operating Temperature | Charge:0~60℃ Discharge:-10~60℃ |
Operation Humidity | 5~95% |
Nominal Operation Altitude | < 3000m |
IP Rating | IP56 |
Communication | RS485,RS232,CAN |
