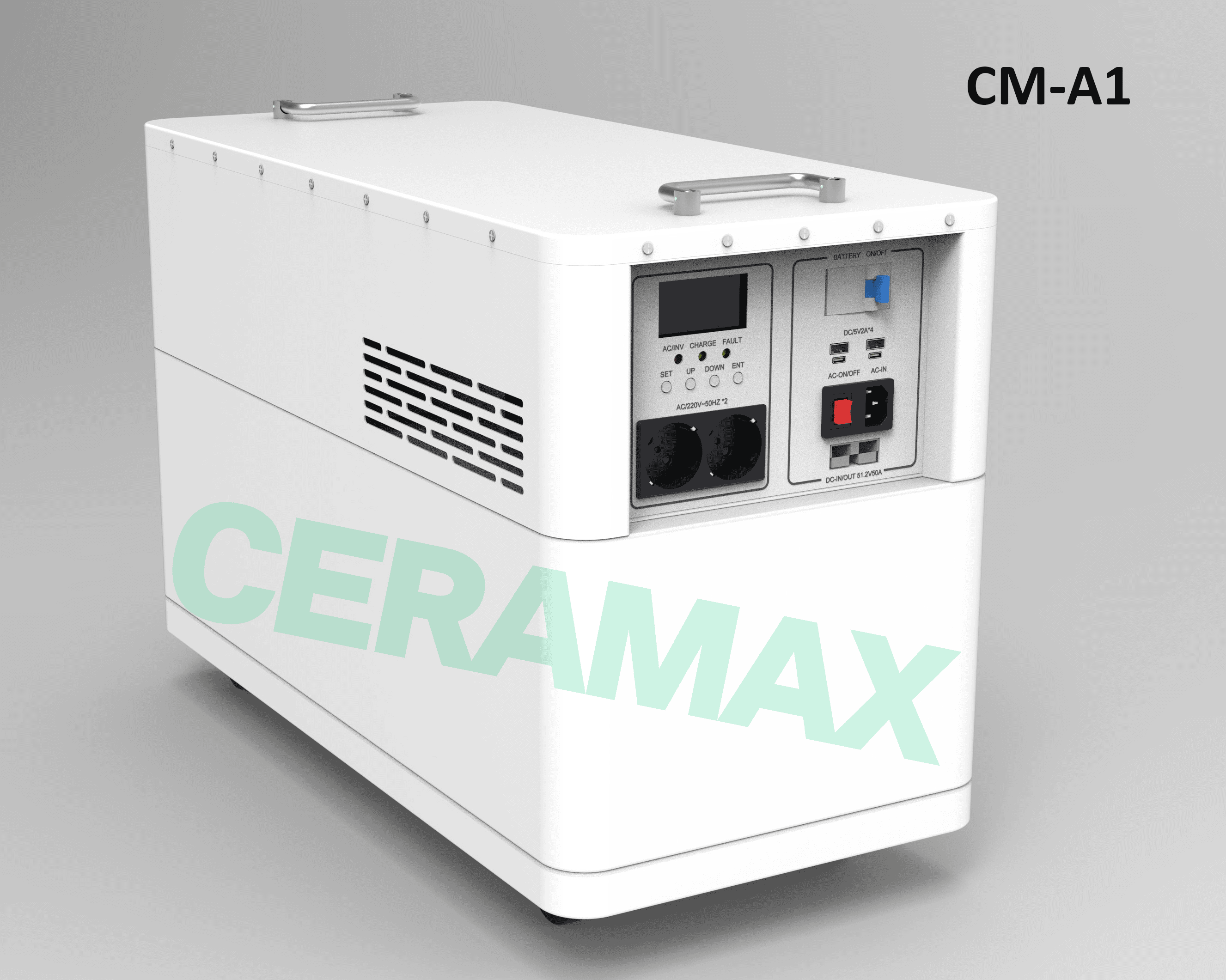

All In One Energy Storage System A-1

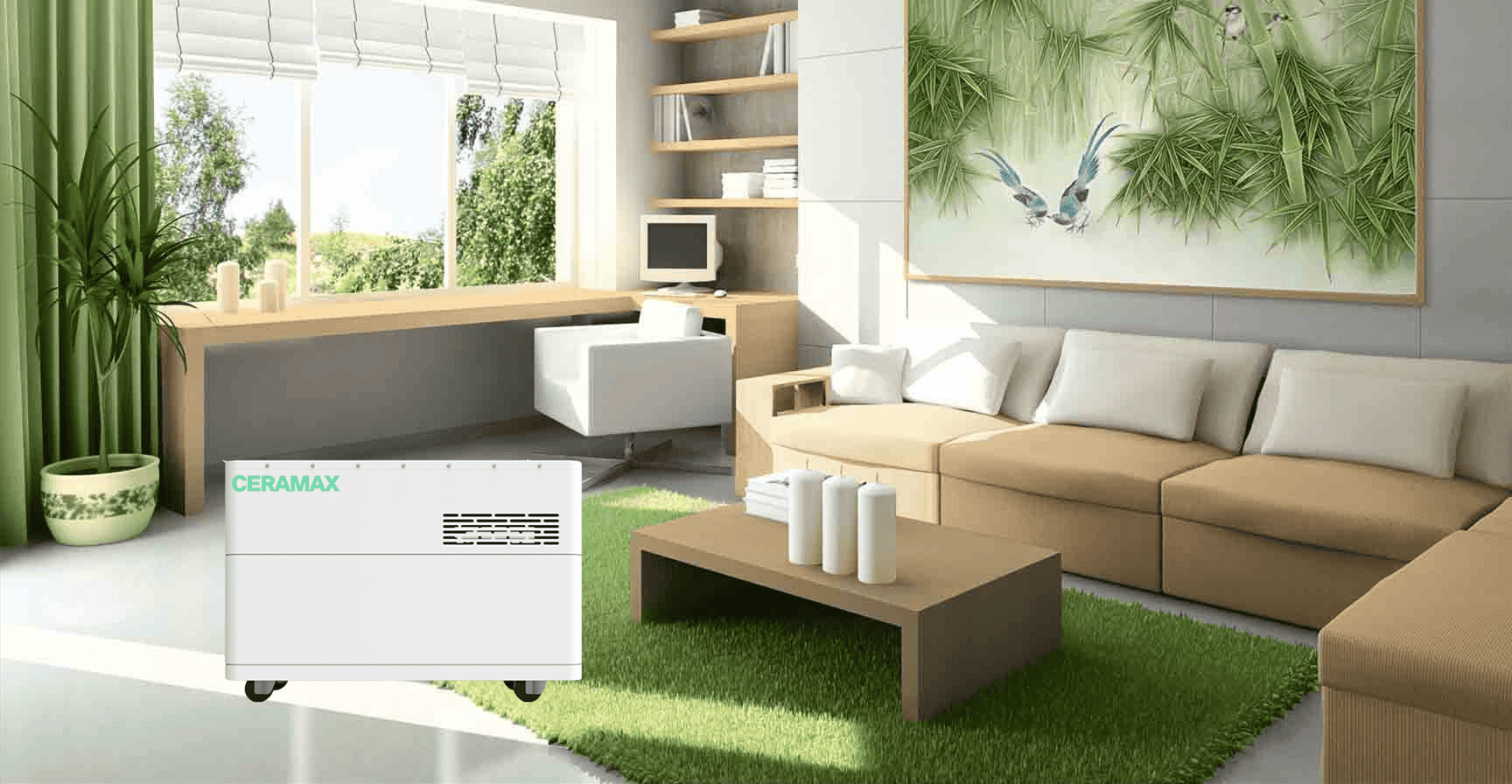

CERAMAX-All In One energy storage system is designed with lithium lifepo4 pack and inverter. It can store excess electricity generated by a solar panel system or electric generator and discharge during periods of high energy demand. In the event of a sudden power outage/power failure of the power grid, the energy storage system can take over the electricity demand of the whole house in time. Besides, it reduces the intermediate process of pairing the energy storage battery with the inverter, making it faster and more convenient to use, providing a reliable and cost-effective energy solution for residential households.
Work Mode Demonstration
Check Ceramax Energy Production Line
| Model | CM-A1 | CM-A2 | CM-A3 | CM-A4 | |
| Battery Type | LiFePO4 | ||||
| Capacity | 2.56KWh | 5KWh | 10KWh | 15KWh | |
| Rated Voltage | 51.2V(16S1P) | ||||
| Recommend Charge/Discharge Current | 25A | 50A | 100A | 150A | |
| Max Discharge Current | 100A | 200A | 400A | 600A | |
| Rated Energy | 2560Wh | 5120Wh | 10240Wh | 15360Wh | |
| Life time | ≥ 6000 cycles(At 80% DOD at 25 deg C) | ||||
| IP protection Rating | IP54 | ||||
| Communication | CAN, RS232, RS485 | ||||
| Rated Output Power | 3KW | 5KW/10KW | |||
| Rated Output Voltage | 110V/220V AC single-phrase | ||||
| Load Capacity of Motor | 4HP | ||||
| Wave Form | Pure Sine Wave | ||||
| Output Mode | Off-grid/Hybrid | ||||
| Solar Input(Solar charge type ) | MPPT | ||||
| Max. Solar Array Power | / | 5.5KW | 5.5KW+5.5KW | ||
| Max. Solar Open Circuit Voltage | 500V DC | ||||
