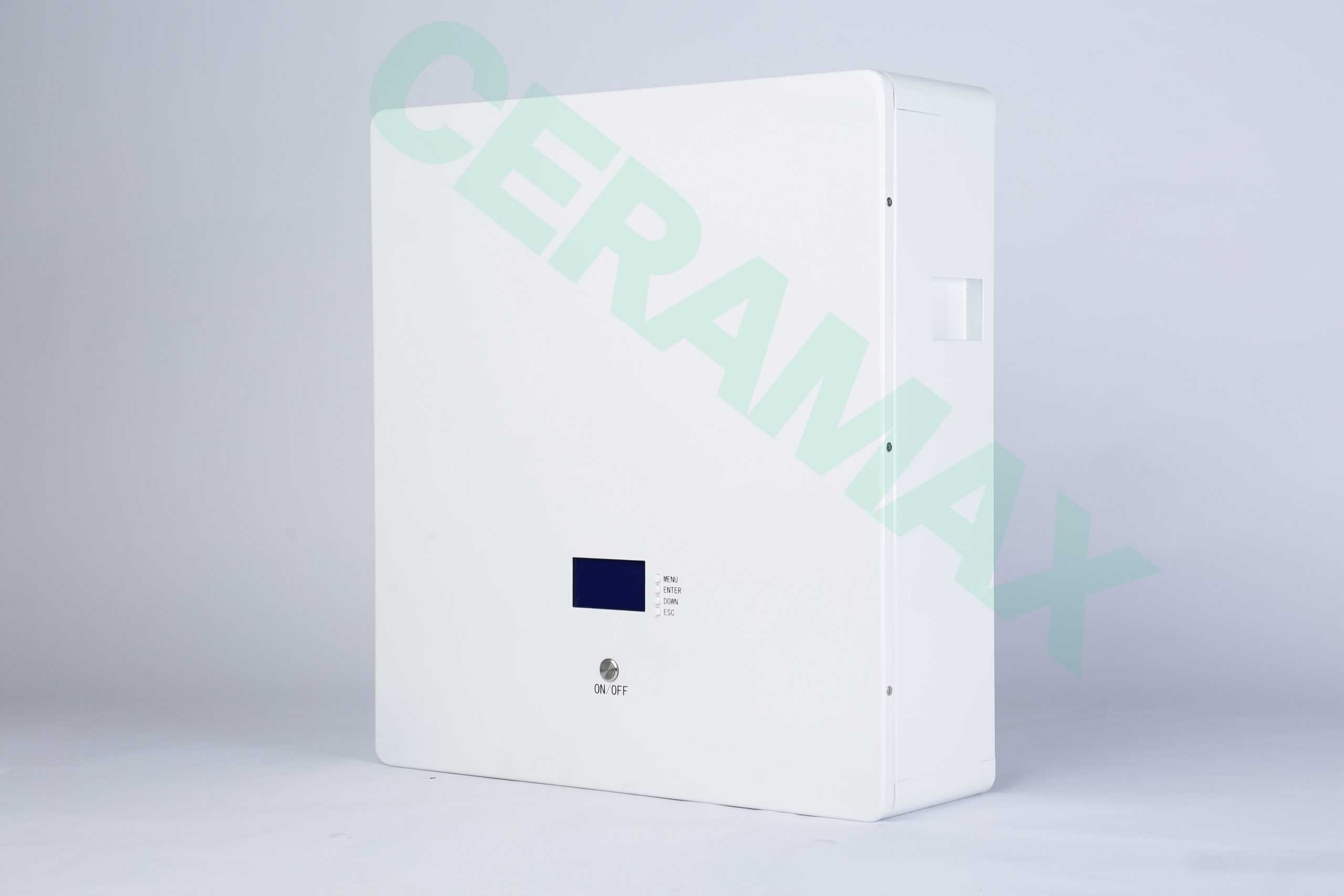

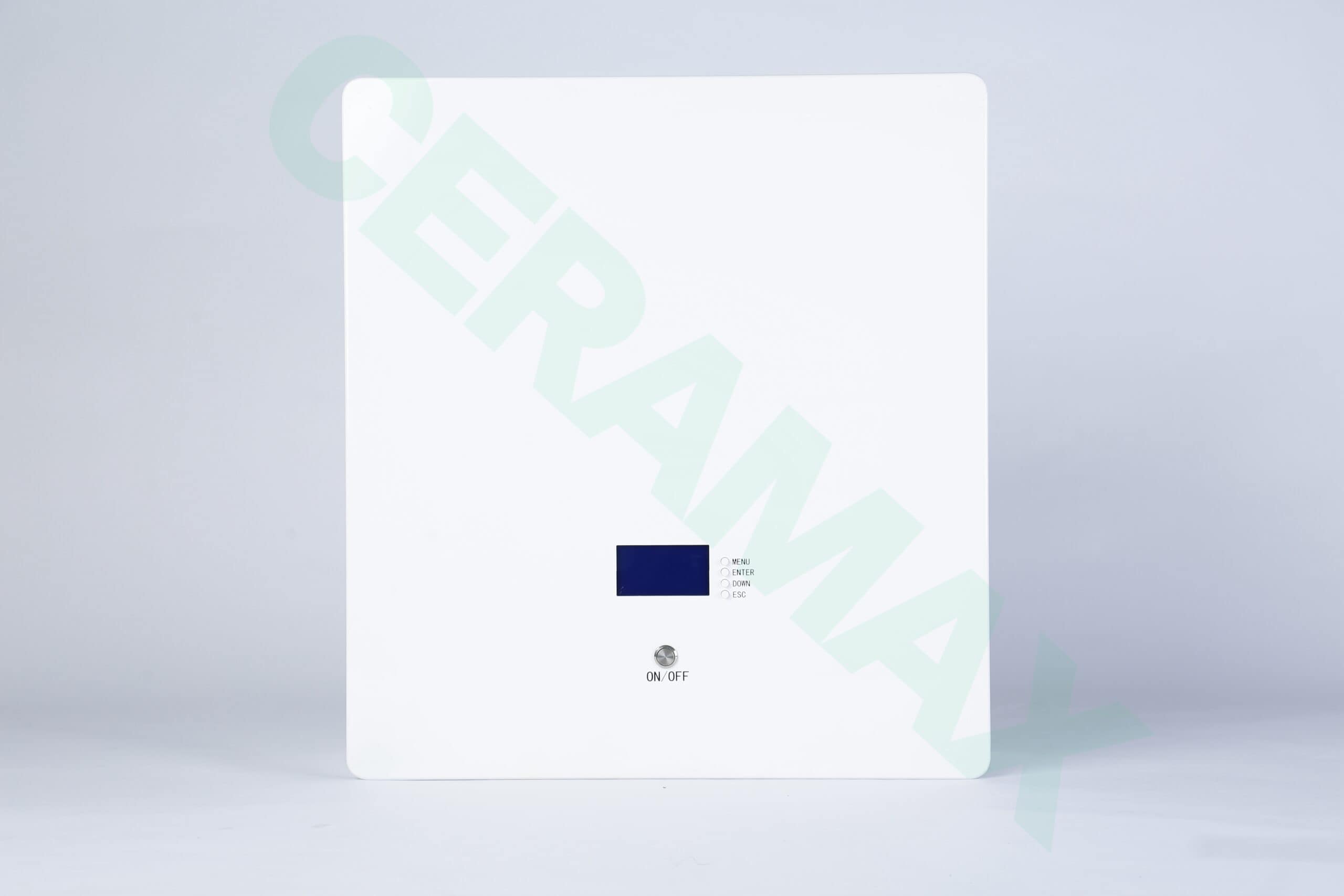

CM-48100 Wall-mounted Lithium Battery
CERAMAX Wall-mounted 48100 lithium battery series are enjoying a good reputation on solar battery system with its high efficiency, longer cycle life and high performance.
This battery is designed with LFP cells offering superior performance and high reliability as they can be used for power storage. What’s more, the built-in super intelligent BMS supports monitoring the battery status in real time.
Work Mode Demonstration
Products Advantage
1.High Safety
（Over charge, over discharge and over temperature protection)

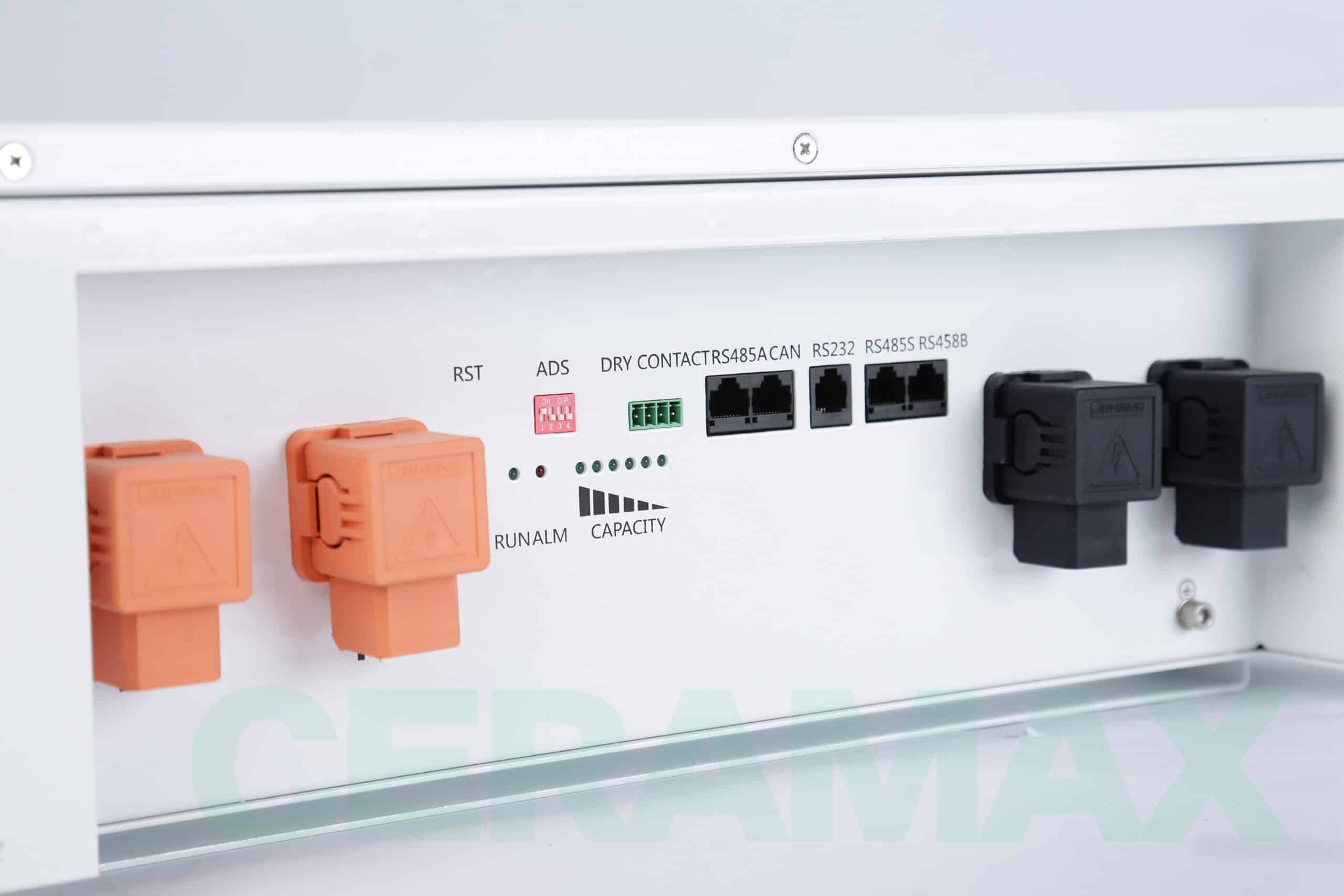

2.Communication
(RS485, RS232, CAN)
3.Long Cycle Life ≥6000 Times
4.Smart
(Each module is equipped with an independent BMS system)
5.Certifications
( CE, MSDS, UN38.3, IEC, TUV)
6.Modular
(Compact size and light weight)
Model | CM48100 |
Battery Type | LFP |
Nominal Voltage | 48V |
Rated Voltage | 51.2V |
Capacity | 100Ah |
Working Voltage Range | 40-58.4V |
Recommend Charge/Discharge Current | 50A |
The Charge/Discharge Ratio | 0.5C |
Rated Energy(KWh) | 5.12 |
DOD | 80% |
Life time | ≥ 6000 cycles(At 80% DOD at 25 deg C) |
Working Temperature | Charge: 0-60℃ Discharge: -10- 60℃ |
Humidity | 5% – 95% |
IP protection Rating | IP56 |
Communication Mode | CAN, RS232, RS485 |
