Solar Panel

About Solar Panel

Solar panel is the panel that can generate electricity from sun energy.  Ceramax solar panel has been approved by its high conversion efficiency and low attenuation. By using solar panel, there are many benefits. On the one hand, it is one kind of green energy, causing no harmful gases or waste. On the other hand, it is cost-effective and can help save electricity bill a lot.

Features

1.Compared to other brands, the liner warranty is longer by 20%.

2.Adaptability to most kinds of environment, except for extremely cold areas or poor light conditions.

3.Excellent temperature coefficient (Pmax): -0.29 %/°C

4.Compared to solar panels on the market, few requirements on terrain and angle when attaining the same effect of power output.

5.Outstanding mechanical load resistance: Certified to withstand high wind loads (2400Pa) and Snow loads (5400Pa). (Default Setting, which can be customized )

If there is any question about how to clean and maintain solar panel, welcome to contact us to get free and professional instruction. Glad to provide any help when you need.

Our Services
From Survey to Support:Inspection & evaluation for tailored solutions; Detailed project plan design.

On-Site and Beyond: Thorough simulation testing before factory departure; On-site installation and commissioning; Operator training for optimal system utilization.

Comprehensive Service Suite: Continuous phone service for ongoing support; On-site technical support; Remote guidance to ensure seamless operations.

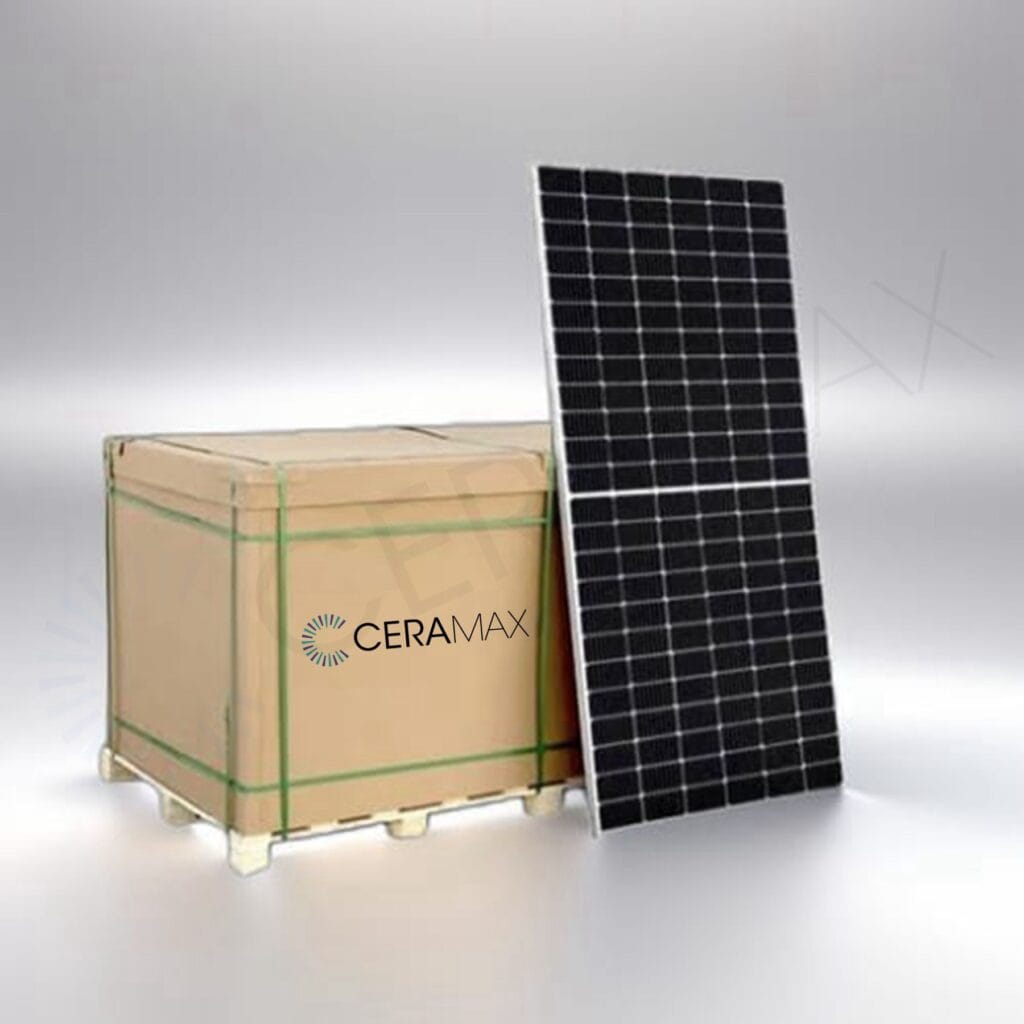

Product Photo

Parameters

Mechanical data

Model Number

TSM144-9-550

TSM144-9-560

TSM144-9-580

TSM144-9-585

Solar Cells

Monocrystalline

Cell Configuration

144 cells (6*12+6*12)

Power

550W

560W

580W

585W

Module Dimension

2278*1134*30mm

Weight



31kg

Warranty

15 years Product Warranty / 30 years Linear Power Warranty

Protection Class

IP68

Connector

MC4 Compatible

Packaging Configuration

Modules Per Pallet

36Pcs

Modules Per 40HQ

20PLT/720Pcs

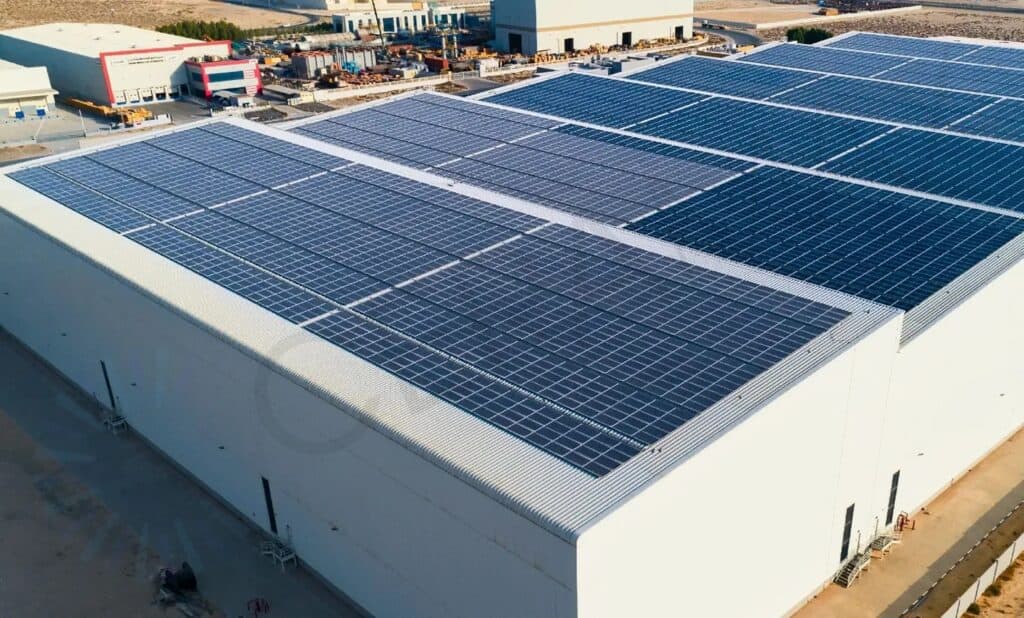

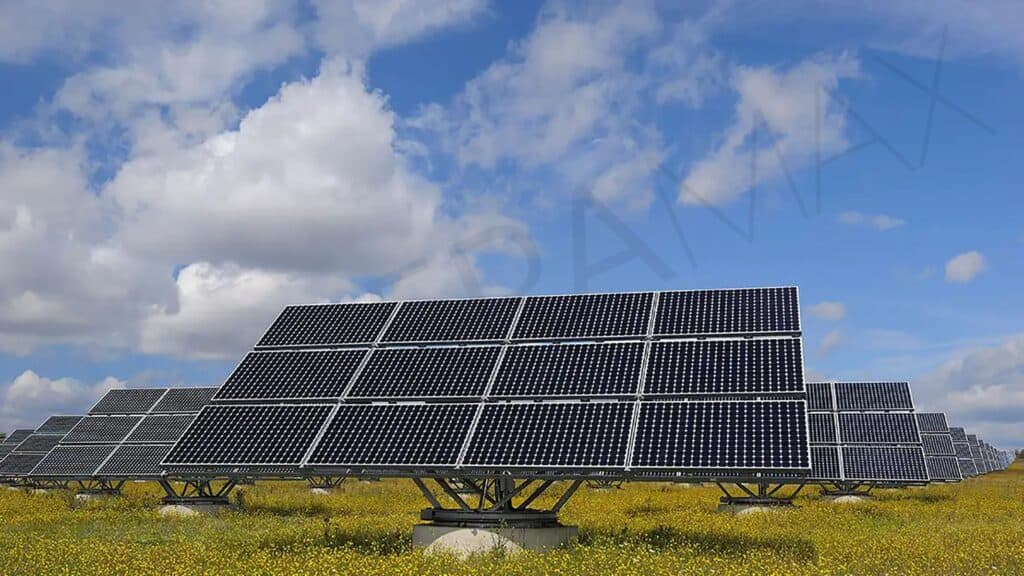

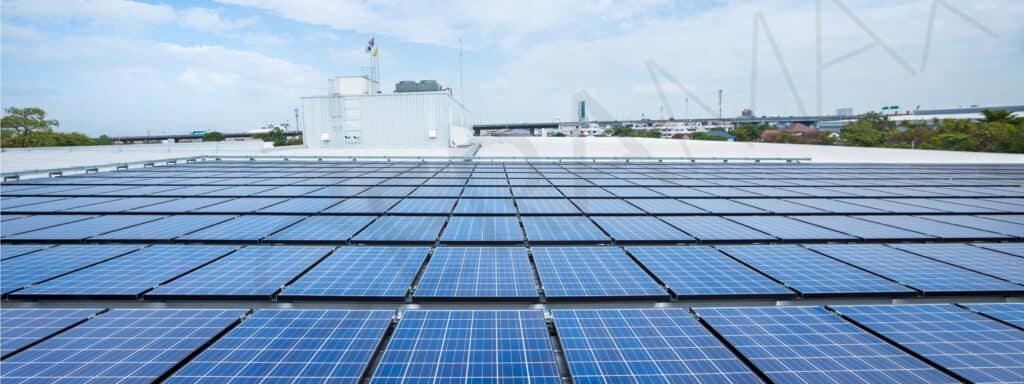

Oversea Case Showroom

What are the cleaning recommendations for solar panel? ​

When cleaning, gently wipe with soft brushes or sponge and rinse with clean water. Regular cleaning every 3 months. (For example, in the Philippines, it is recommended to clean every 3 months when it rains a lot with typhoon in summer and autumn. While in Uganda, it is recommended to clean every 5 month when it is in dry season. )
