CM-24100 Powerwall Lithium Battery
CM-24100 Powerwall Lithium Battery with high capacity and deep cycle life.
Through the intelligent BMS system, the battery can monitor the battery status in real time. The battery has explosion-proof protection and circuit protection, high security. Over charge, over discharge and high/low temperature protection of the battery can be realized.
We can provide customized service, OEM&ODM service.

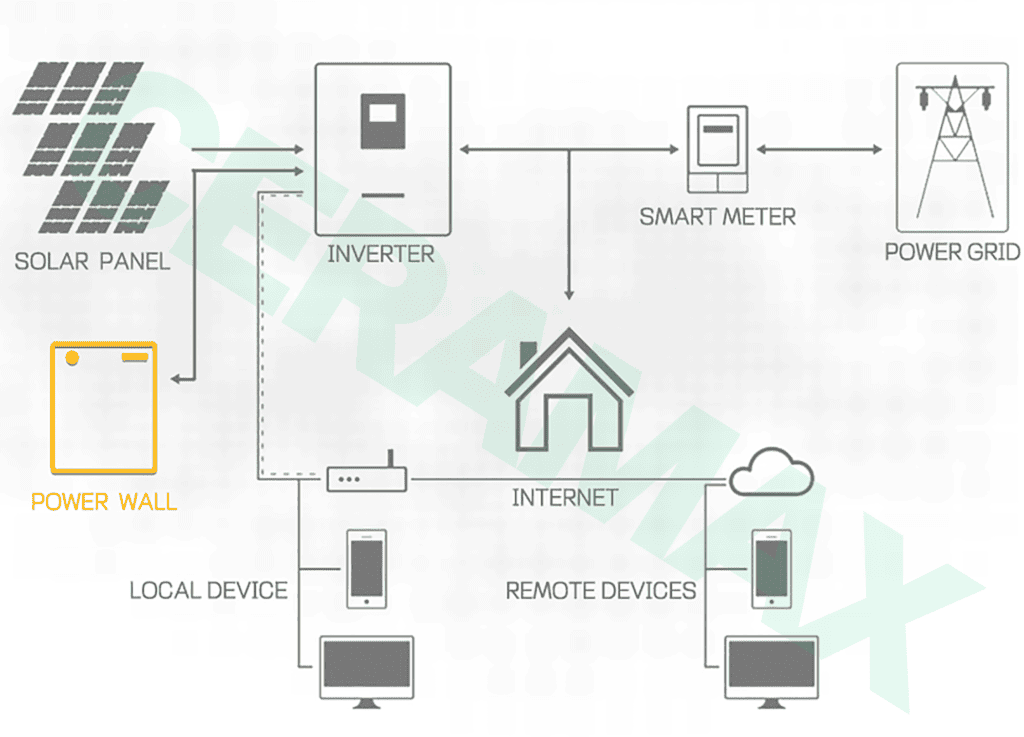

Work Mode Demonstration
Products Advantage
1.High Safety
（Over charge, over discharge and over temperature protection)

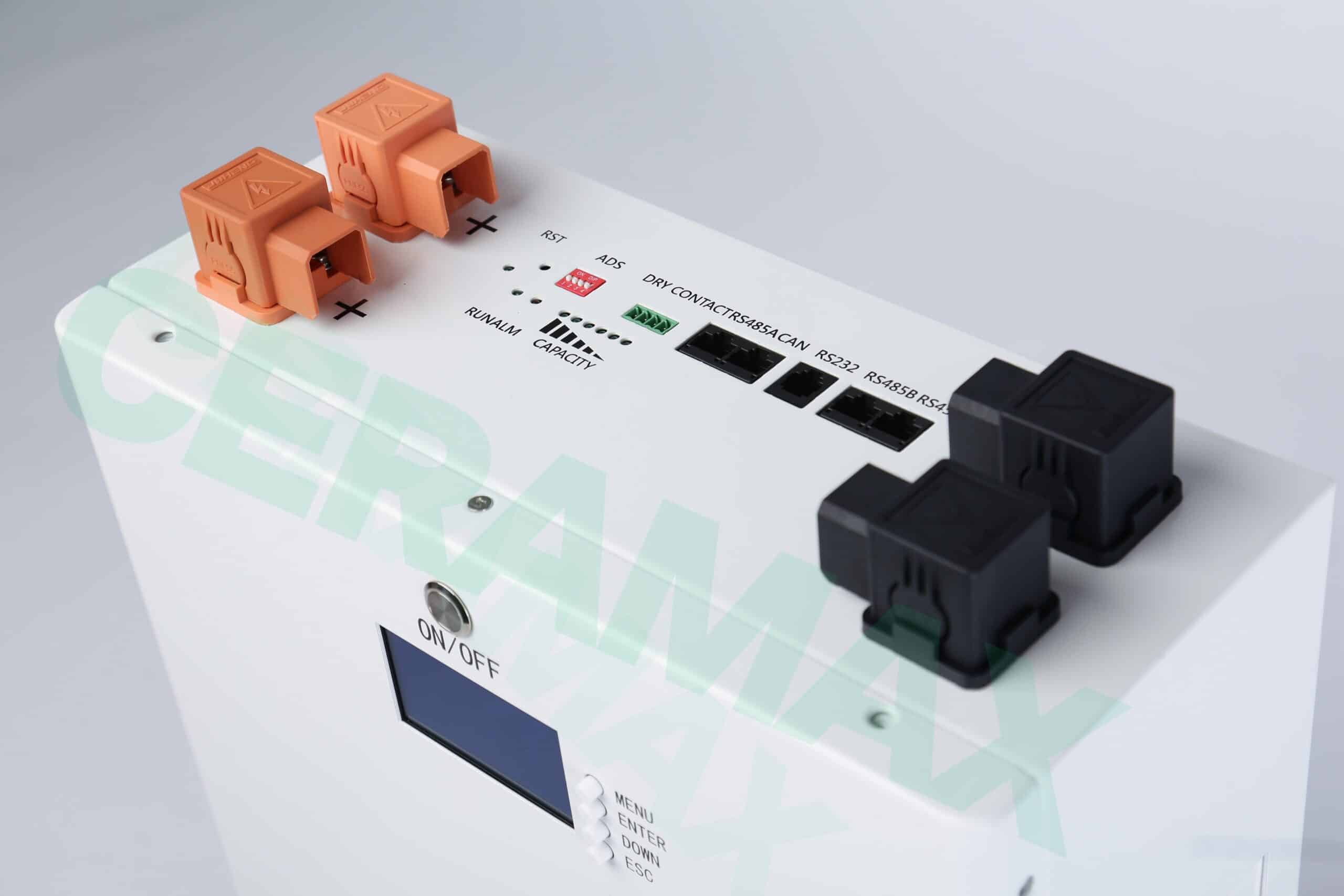

2.Communication
(RS485, RS232, CAN)
3.Long Cycle Life ≥6000 Times
4.Smart
(Each module is equipped with an independent BMS system)
5.Certifications
( CE, MSDS, UN38.3, IEC, TUV)
6.Modular
(Compact size and light weight)
Model | CM24100 |
Battery Type | LFP |
Nominal Voltage | 24V |
Rated Voltage | 25.6V |
Capacity | 100Ah |
Working Voltage Range | 20-29.2V |
Recommend Charge/Discharge Current | 50A |
The Charge/Discharge Ratio | 0.5C |
Rated Energy(KWh) | 2.56 |
DOD | 80% |
Life time | ≥ 6000 cycles(At 80% DOD at 25 deg C) |
Working Temperature | Charge: 0-60℃ Discharge: -10- 60℃ |
Humidity | 5% – 95% |
IP protection Rating | IP56 |
Communication Mode | CAN, RS232, RS485 |
