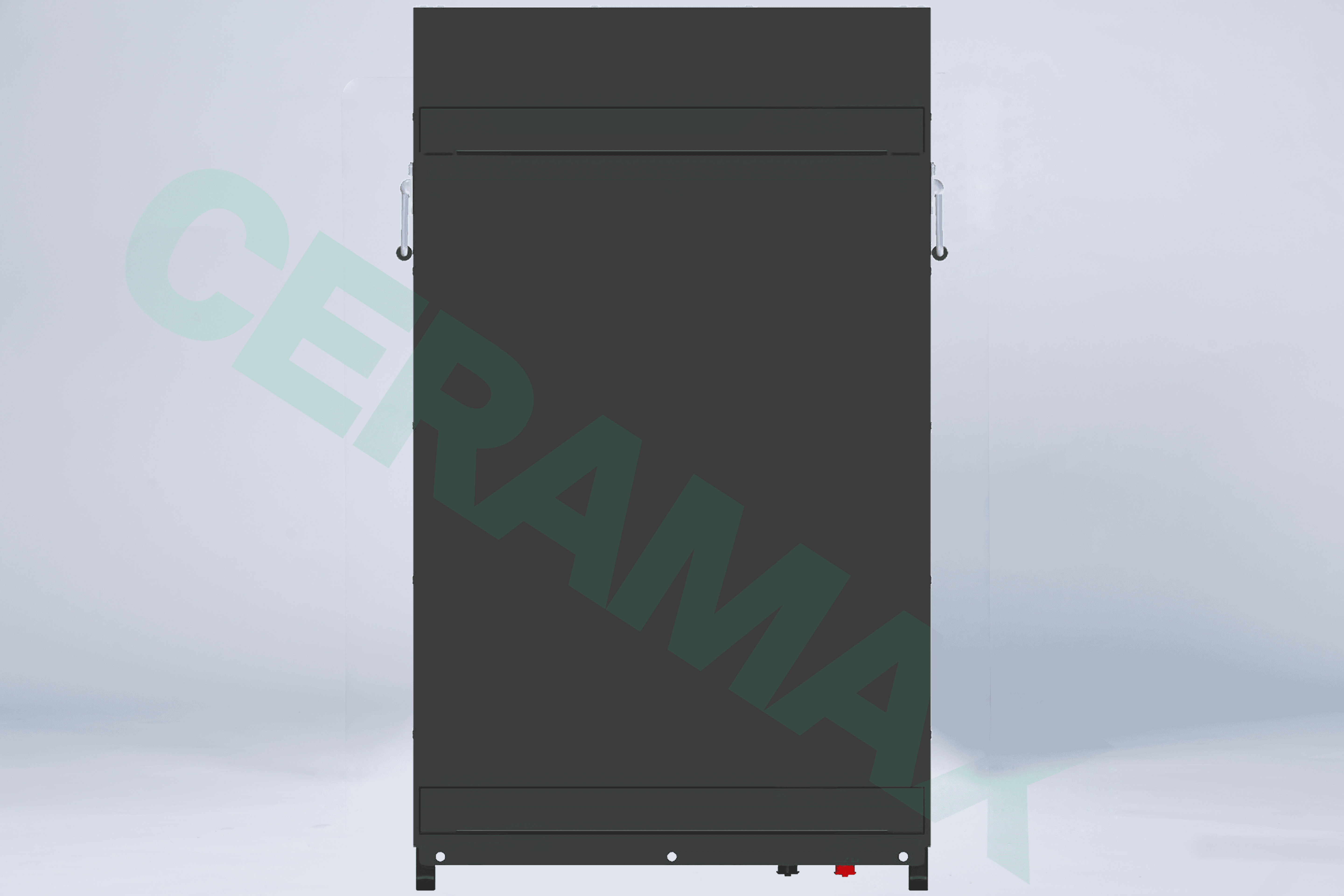

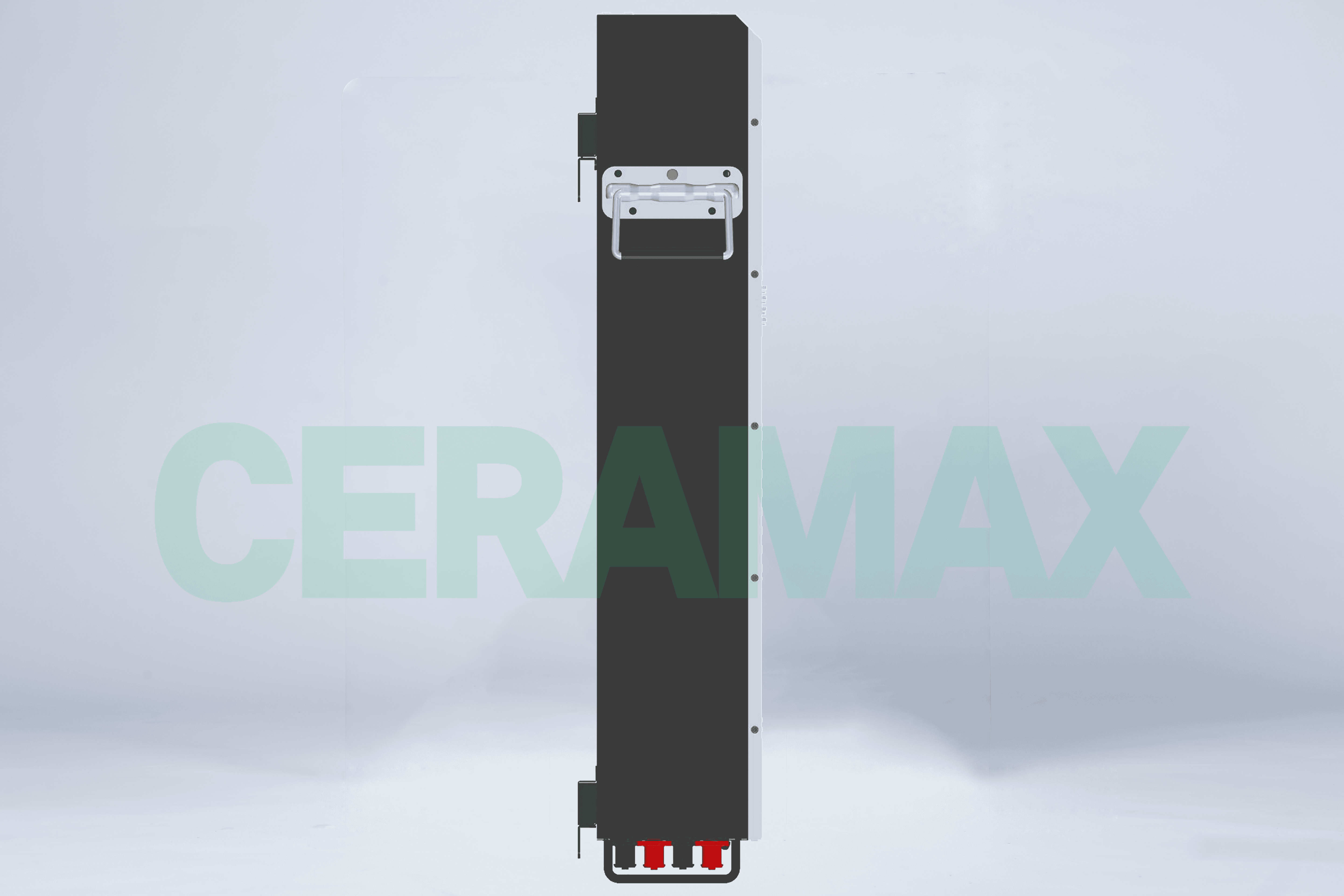

CM-48150 Lithium Storage Battery
CERAMAX Wall-mounted 48150 lithium battery is a low-voltage DC battery system with an operating voltage of 51.2V, and works with a low voltage inverter to realize the goal of energy storage for home application.
The battery has a built-in battery management system (BMS), which can manage and monitor the pack and cell information, including voltage, current and temperature. What’s more, the BMS can balance cell charging and discharging to extend cycle life.

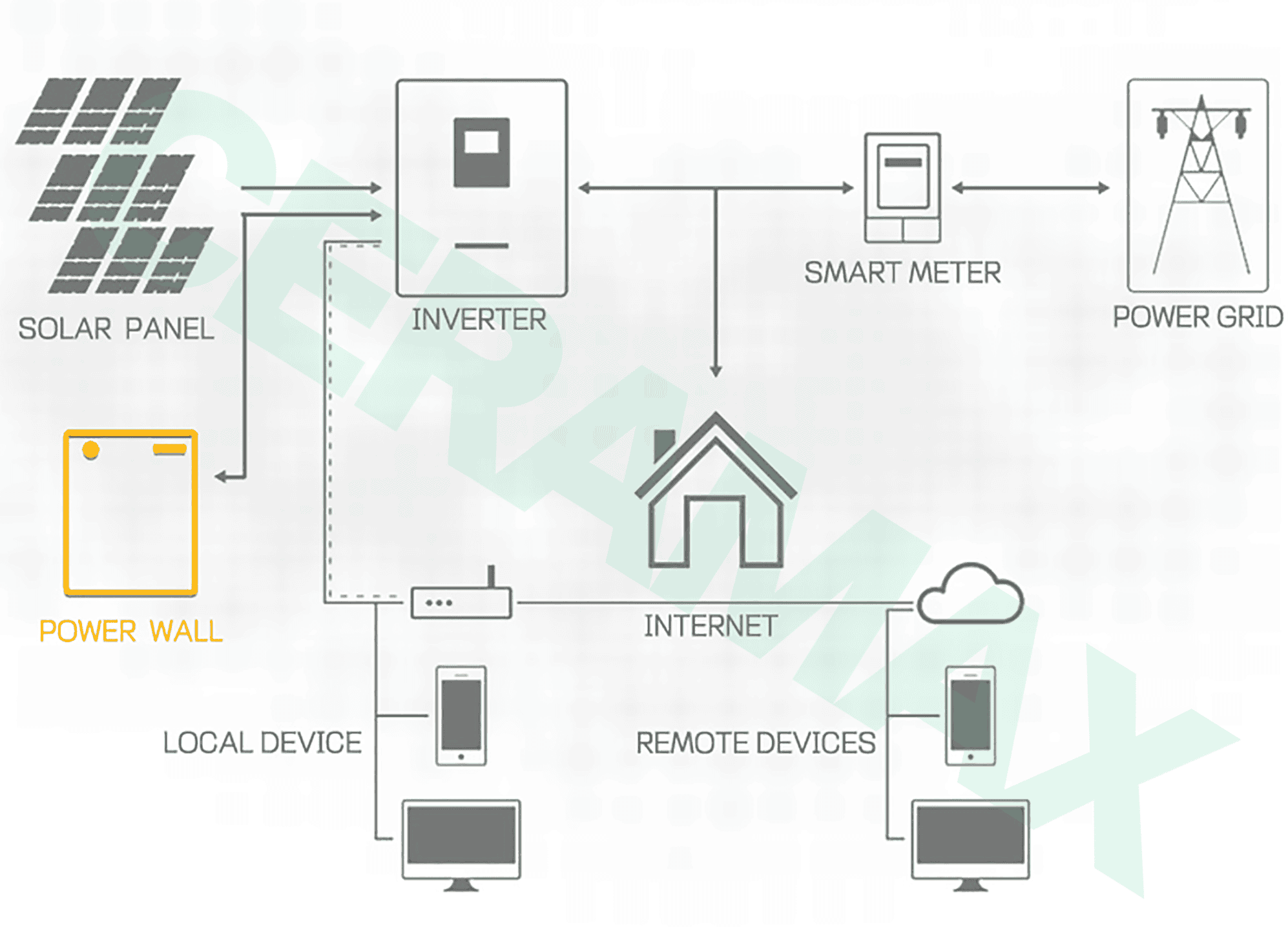

Work Mode Demonstration
Products Advantage
1.High Safety
（Over charge, over discharge and over temperature protection)

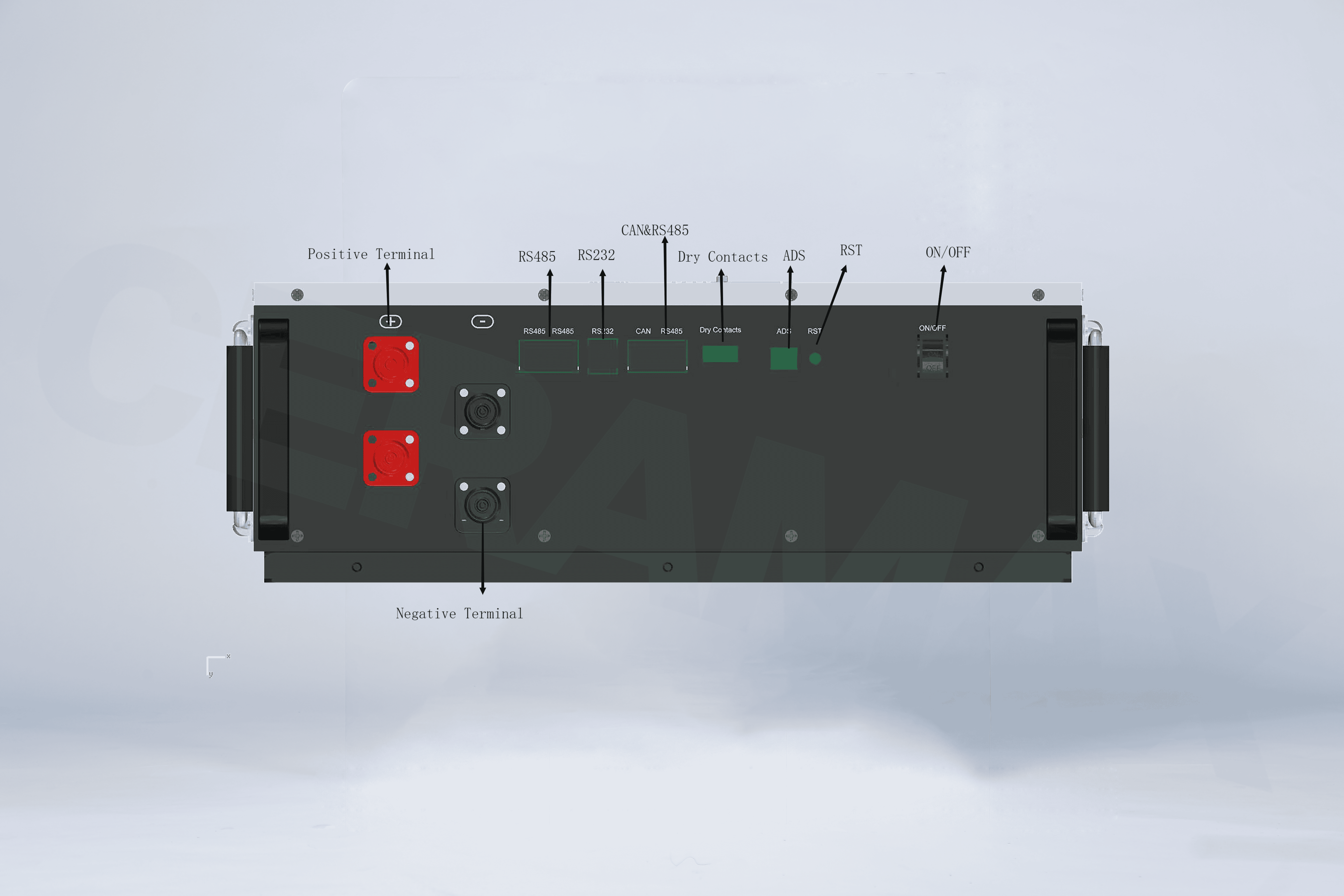

2.Communication
(RS485, RS232, CAN)
3.Long Cycle Life ≥6000 Times
4.Smart
(Each module is equipped with an independent BMS system)
5.Certifications
( CE, MSDS, UN38.3, IEC, TUV)
6.Modular
(Compact size and light weight)
Model | CM48150 |
Battery Type | LFP |
Nominal Voltage | 48V |
Rated Voltage | 51.2V |
Capacity | 150Ah |
Working Voltage Range | 40-58.4V |
Recommend Charge/Discharge Current | 75A |
The Charge/Discharge Ratio | 0.5C |
Rated Energy(KWh) | 7.68 |
DOD | 80% |
Life time | ≥ 6000 cycles(At 80% DOD at 25 deg C) |
Working Temperature | Charge: 0-60℃ Discharge: -10- 60℃ |
Humidity | 5% – 95% |
IP protection Rating | IP56 |
Communication Mode | CAN, RS232, RS485 |
